Camera ASI533MM-P

This camera is equipped with IMX 533 CMOS sensor which has very low readout noise and no amp glow.

In addition, its quantum efficiency of 91% at 460nm is particularly useful for use in spectroscopy where it is desired to have a signal in the blue part of the spectrum.

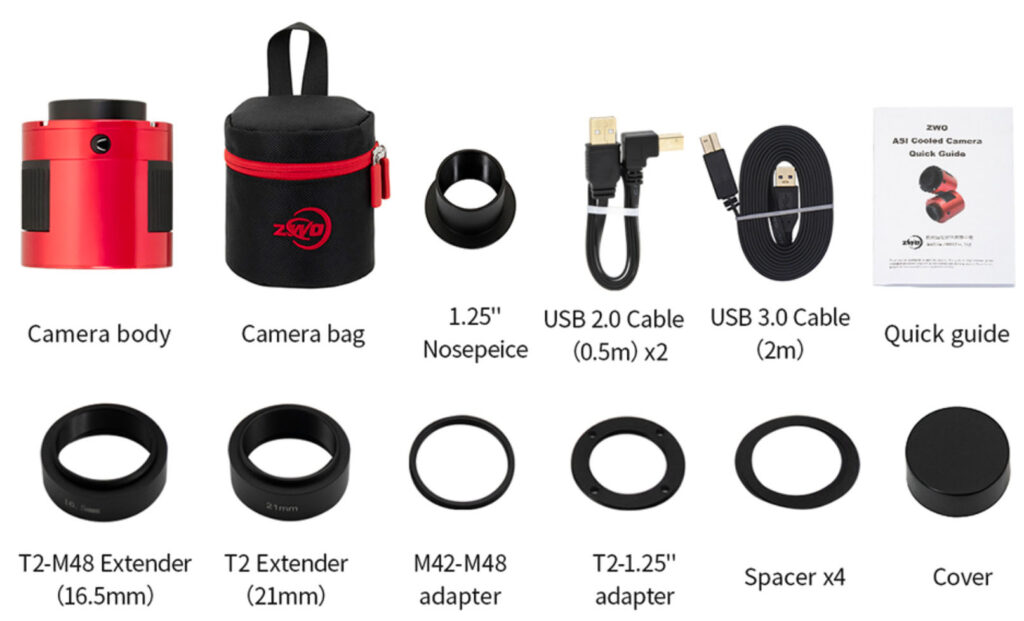

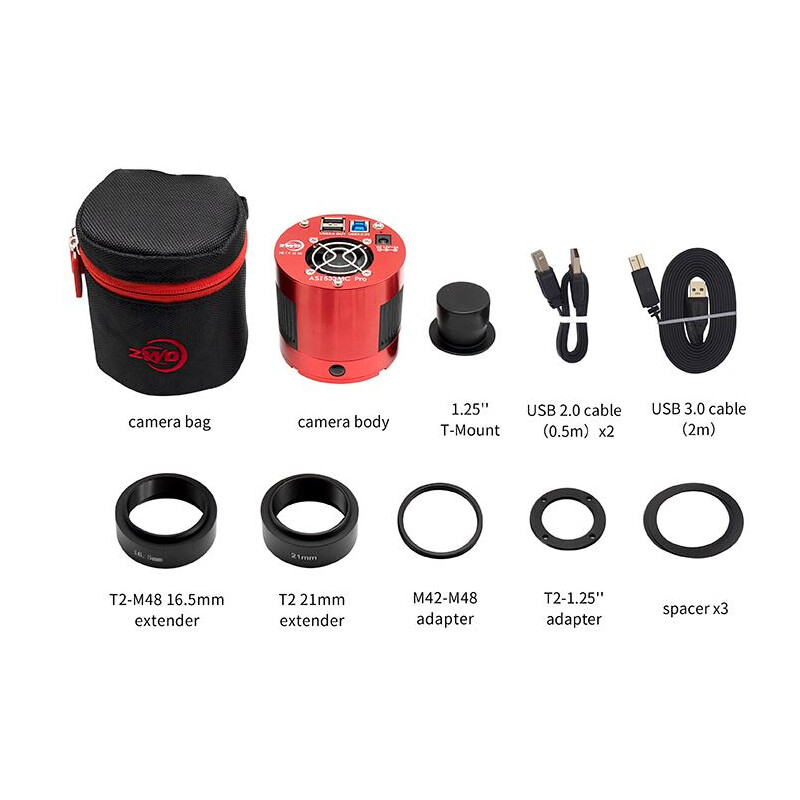

The camera comes with the following accessories:

Sensor : Sony-IMX533CLK-D
Sensor diagonal : 15.968mm
Resolution: 9 Mega Pixel 3008 x 3008
Pixel size of 3.76μm
Shutter : Rolling shutter
Exposure Range: from 32 μs to 2000 s
read noise: from 1 to 3.8 e-

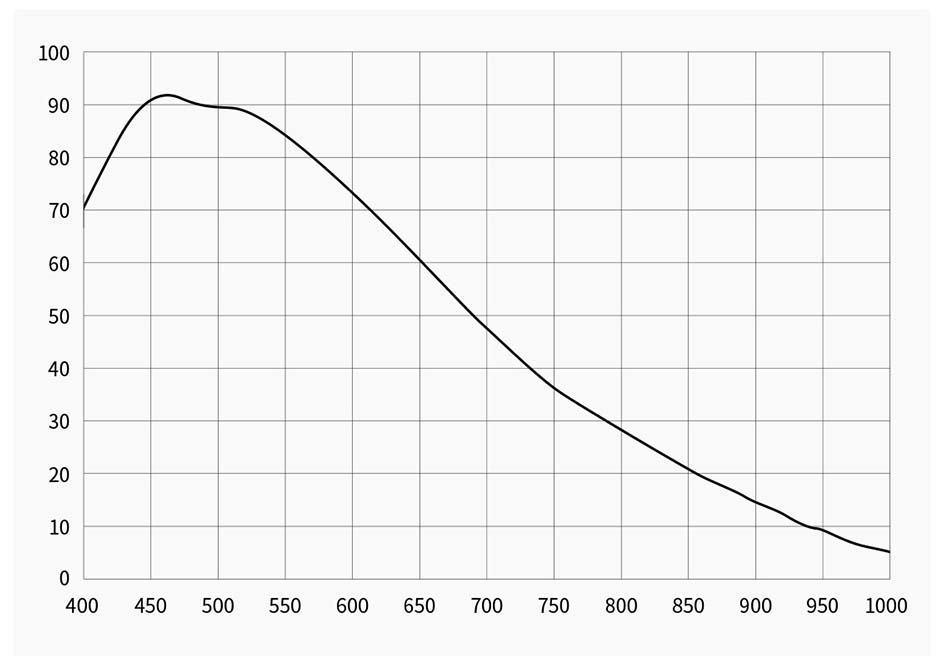

QE peak: 91% @ 460nm
Full well: 50000 e-
ADC : 14 bit
Interface: USB 3.0 Type-B
Adaptor: M42X0.75
Protect window: D32-2-AR

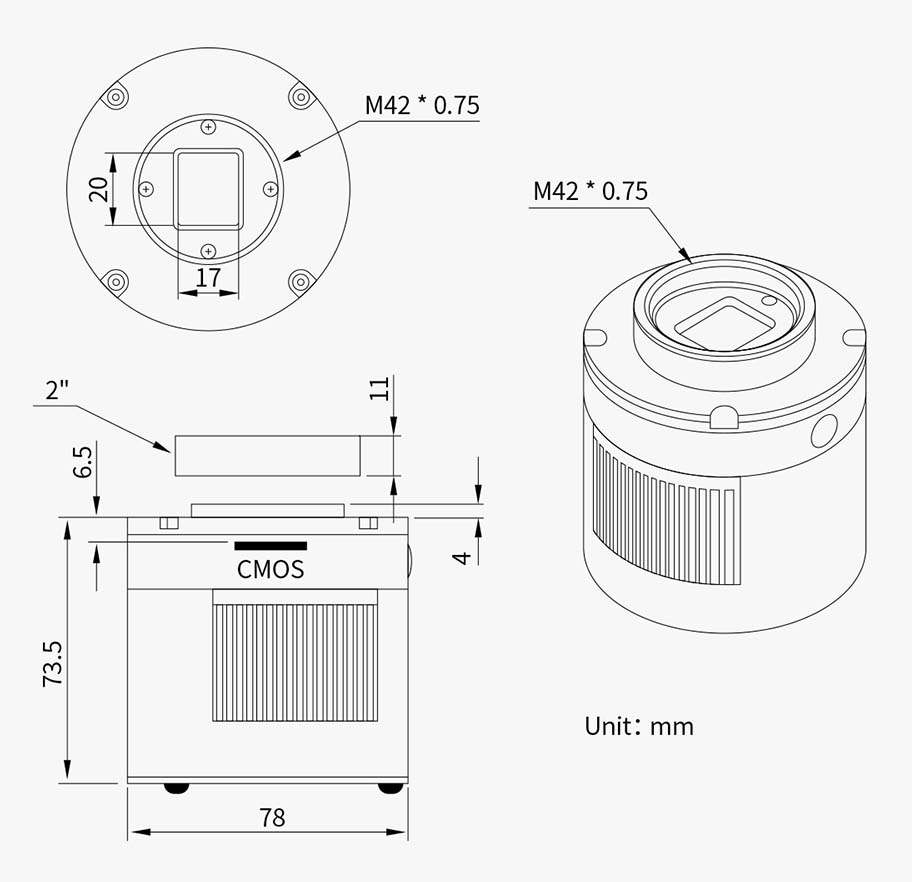

Dimensions : 78mm in diameter, 73,5mm length
Weight: 470g
Back Focus Distance: 17.5mm
Delta T: 30°C-35°C below ambient

Camera Power consumption: 650mA at 5V
Cooler Power consumption: 12V at 3A Max
Working Temperature: -5°C—50°C
Storage Temperature: -10°C—60°C
Working Relative Humidity: 0%—80%
Storage Relative Humidity: 20%—95%
